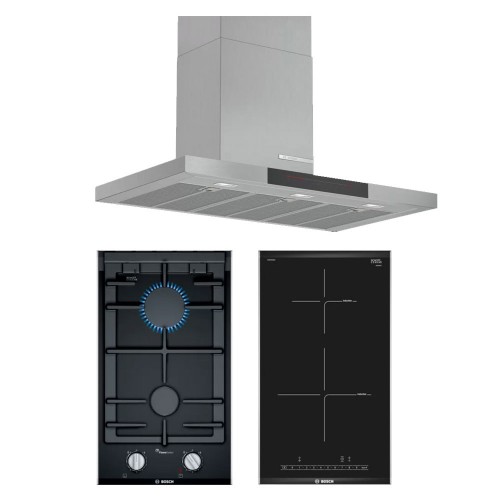

Bosch DWB98JQ50B Series 6 Wall-mounted cooker hood 90 cm
- PerfectAir sensor: automatic control of settings for maximum extractor performance with minimal noise.
- DirectSelect control: direct selection of desired settings and light.
- Extra quiet: maximum extractor performance with minimal noise.
- Intensive speed setting: Removes strong kitchen odours quickly and effectively
- Grease filtration level: filters out over 85% of the grease from kitchen air
Technical Specifications
Performance
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use430m³/h
Intensive844 m³/h
Design
90 cm Wall Hood Hood, Silver metallic
Box design
Comfort:
air quality sensor 1.1
Automatic intensive revert after 6 min.
Automatic run on for 10 min.
Easy to clean yes
softLight
3 x 1.5W LED
Saturation indicator for metal and charcoal filter
Removable metal grease filter, dishwasher safe
3 removable metal grease filters
Energy Efficiency Class: A+
Technical information:
Dimensions exhaust air (HxWxD mm): 614-954 x 898 x 500
Dimensions recirculating (HxWxD mm): 614-1064 x 898 x 500
Dimensions recirculating with CleanAir module (HxWxD mm):
689 x 898 x 500- mounting with outer chimney
795-1139 x 898 x 500 - mounting with telescopic chimney
Suitable for ducted or recirculating operation
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Electrical cable lenght 1.3 m
Voltage: 220 - 240 V
_________________________________________________
Bosch PRB3A6B70K Series 8 Domino gas hob 30 cm Ceramic
- FlameSelect: for a precise adjustment of the flame in nine defined levels.
- Heavy-duty continuous surface grates can be easily and quickly cleaned in the dishwasher.
- Continuous cast-iron pan support: for high firmness and stability of cookware.
- Sword knobs: for an ergonomic control.
- Surface: highly heat-resistant glass-ceramic design.
Technical Specifications
Heating Functions
2 PC gas burner
Domino - Can be combined with other Bosch hobs
Front standard burner maximum power: 1.9 KW (depending on gas type)
Rear centre high-speed burner maximum power: up to 2.8 KW (depending on gas type)
Design
Black ceramic base
Sword control knobs
Comfort
Step valve 9 steps
Cast iron pan supports
Knob ignition
Technical Information
Dimensions of the product (HxWxD mm) : 45 x 306 x 527
Required niche size for installation (HxWxD mm) : 45 x 270 x 490 - 502
Gas connection rating: 4700 W
Electrical connection rating: 1.1 W
Length of mains cable: 150 cm
Plug type: GB plug
_________________________________________________
Bosch PIB375FB1E Series 6 Domino induction hob 30 cm
- DirectSelect: Direct, simple selection of the desired cooking zone, power and additional functions.
- PowerBoost: Up to 50% more power for faster heating.
Technical Specifications
Cooking Zone
2 Induction cooking zones
Variable 17-stage power settings for each zone
Cooking zones:
1 x Ø 145 mm, 1.4 KW (max. Power level 2200 W) Induction
1 x Ø 210 mm, 2.2 KW (max. Power level 3700 W) Induction
Design
Comfort profile (ceramic front facette with stainless steel side trim)
Can be combined with other A01 hobs
DirectSelect touch control panel
Key Functions
Switch off timer for every cooking zone
Timer
Count-up timer
Automatic pan recognition sensor
PowerManagement Function
Safety switch-off
Childproof lock
QuickStart Function
ReStart Function
2 stage residual heat indicator
Dimensions
Dimensions of the product (HxWxD mm) : 51 x 306 x 527
Length of main cable: 110 cm
Electrical connection rating: 3700 W
Required niche size for installation (HxWxD mm) : 51 x 270 x 490-500
