Cooler Master NR-200P-MCNN85-SL0 NR200P Max

Product Code: NR-200P-MCNN85-SL0
Availability: Out Of Stock

Price: SGD 499.00

Qty: - OR - Add to Wish List
Add to Compare

Description Technical Specifications

STREAMLINE YOUR BUILD EXPERIENCE

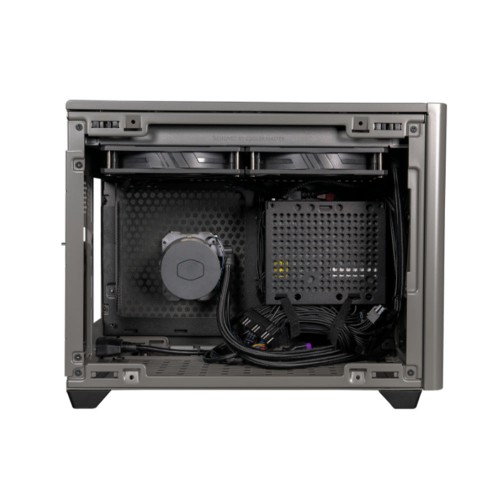

The pre-installed, pre-routed power supply and CPU-cooler allows for ease of building and optimal cable & tubing management. Install a motherboard, HDDs and finish off with a GPU: no hassle, no routing. Stow away excess cables and you’re good to go.

DESIGNED FOR HIGH-END ITX SYSTEMS

The NR200P MAX thermal and power delivery solutions are specifically tuned to ensure compatibility with any high-end system a user can dream of. Being only 18 liters in volume, the NR200P MAX is design to simultaneously satisfy power, performance, and minimal footprint.

PATENTED QUICK INSTALL GPU PANEL

This exclusive, removable GPU panel design simplifies the process of mounting large GPUs in SFF chassis, enabling greater hardware support and hands-free installation.

TAILOR-MADE PREMIUM COOLING AND POWER DELIVERY

Next gen systems are becoming more and more power hungry and to power it all, NR200P MAX implements a 850W Gold certified PSU with custom length textured cables specifically designed to cover all performance needs.

A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed 3rd gen Cooler Master pump/CPU block provides reliable cooling for the CPU. AMD sockets up to AM4 and Intel sockets up to LGA1700 are fully supported.

TRIPLE-SLOT GPU SUPPORT

NR200P MAX supports high performance triple-slot GPUs up to 336mm in length and 140mm in height, four 6+2 pin power cables included. The chassis has been specifically designed for a vertically mounted GPU to ensure powerful performance.

VERSATILE HARD DRIVE SUPPORT

NR200P MAX provides three dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.

EASILY ACCESSIBLE M.2 DRIVES

The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.

PREMIUM PCIE GEN4 RISER CABLE INCLUDED

NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

360° ACCESSIBILITY

All exterior panels can be removed for component installation and cable management. The frame may also be disassembled for advanced access and freedom of customization in building complex systems.

COOLING EFFICIENCY BEYOND COMPARE

NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.

Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.

PERFORMANCE UNBOUNDED

The pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.

Specs

Product Number NR200P-MCNN85-SL0

Exterior Color Black / Grey

Materials - Exterior SGCC Steel, Mesh, ABS Plastic

Materials - Left Side Panel Tempered Glass x1, Steel x1

Dimensions (L x W x H) 377 x 185 x 292mm (incl. Protrusions), 361 x 185 x 274mm (excl. Protrusions)

Volume 18.30L

Motherboard Support Mini-ITX, Max. size: 170 x 180mm

Expansion Slots 3

Drive Bays - 5.25" ODD 0

Drive Bays - 3.5" HDD 1 (Max. 2)

Drive Bays - 3.5" / 2.5" Combo 1

Drive Bays - 2.5" SSD 2 (Max. 3)

I/O Panel 2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Headset Jack (Audio + Mic)

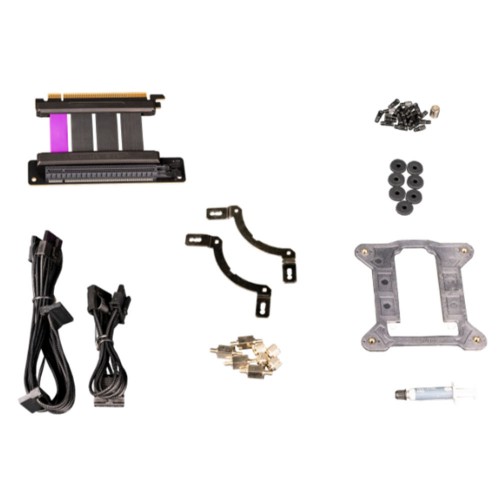

Included Accessories 1x MasterAccessory Riser Cable PCIe 4.0 x16 - 35mm

Included CPU Cooling Solution 280mm radiator, 2 x 140mm SickleFlow PWM, Gen 3 Cooler Master Pump / CPU Block

Included Power Supply Unit V850 SFX GOLD 850 Watt

Fan Support - Top 2 x 120mm / 2 x 140mm

Fan Support - Bottom 1 x 120mm (max 15mm, with 3.5" HDD at the bottom), 2 x 120mm (max 15mm, w/o 3.5" HDD at the bottom)

Radiator Support - Top 240mm / 280mm

Clearances - CPU Cooler 67mm

Clearances - Power Supply 130mm

Clearances - Graphics Card L: 336mm (incl. power connector), H: 160mm (incl. power connector), W: 75mm (triple slot)

Dust Filters Bottom, Left, Right, Top Panels

Power Supply Support SFX, SFX-L

Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)

Size Mini ITX
