Seamless Coverage: Achieve seamless whole-home coverage with a mesh Wi-Fi system and eliminate weak signal areas once and for all.
One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
Broad Coverage: Enjoy Wi-Fi coverage up to 2,500 square feet with every Deco M9 Plus unit.
Fast Connections: Three separate wireless bands up to 2134 Mbps with a dynamic backhaul up to 1.5 Gbps ensure stable, high-speed connections wherever you are in your home.
Seamless Management: Deco M9 Plus acts as a hub for your wireless and smart home devices.
Connect Multiple Devices: Deco handles traffic from even the busiest networks, providing lag-free connection for over 100 devices.
Total Security: HomeCareTM provides personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS)* to ensure a safer online experience.
Setup Made Easier Than Ever: The Deco app walks you through setup—step by step.
Specs
WIRELESS
Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Bluetooth 4.2
ZigBee HA 1.2
WiFi Speeds
AC2200
5 GHz: 867 Mbps (802.11ac)
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
WiFi Range 4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
8× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Tri-Band
Distribute devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes
Router Mode
Access Point Mode
HARDWARE

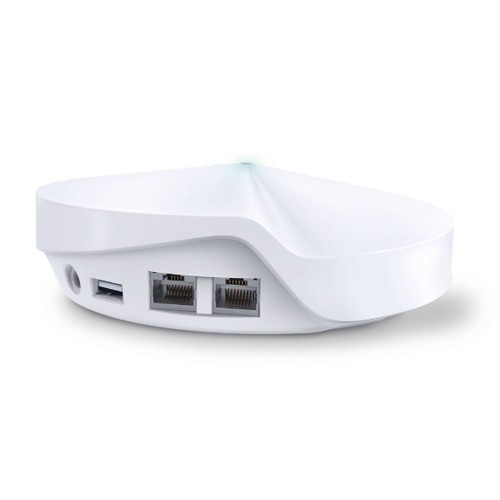

Ethernet Ports
2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SECURITY
WiFi Encryption
WPA-Personal
WPA2-Personal
Network Security
SPI Firewall
Access Control
Network Security
SPI Firewall
Access Control
HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
HomeCare™ QoS
QoS by Device
QoS by Application
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
TEST DATA
WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
PHYSICAL
Dimensions (W×D×H)
5.7 × 5.7 × 1.8 in
(144 × 144 × 46 mm)
Package Contents

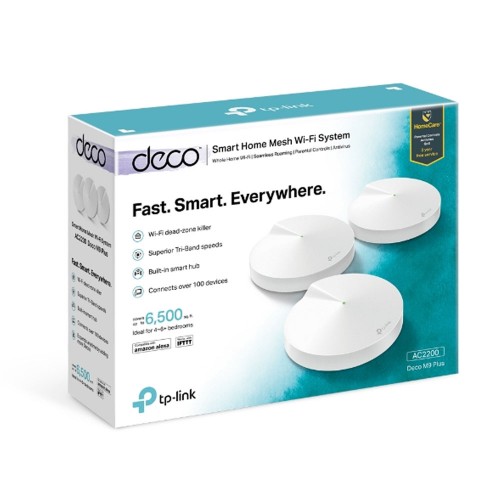

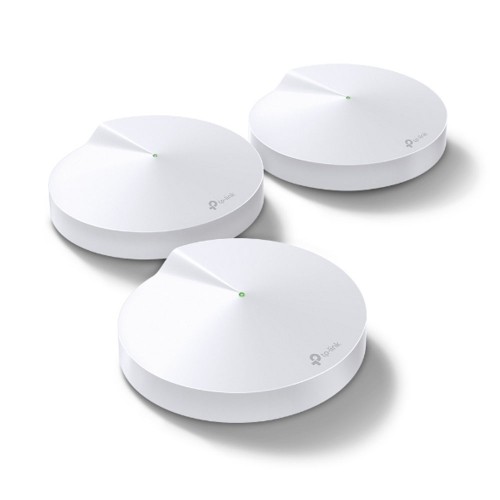

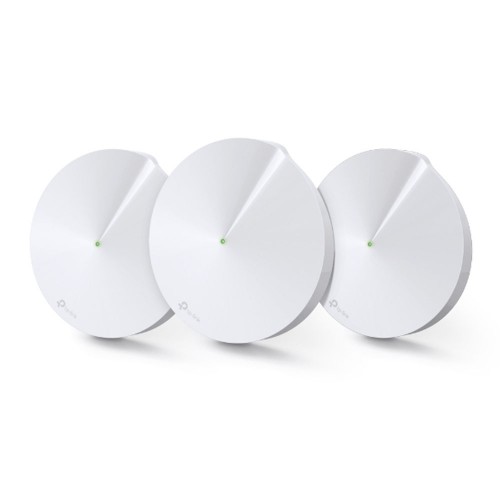

Deco M9 Plus (3-pack)
3 Deco M9 Plus Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
OTHERS
System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
